NozzlePRO



Advanced FEA for Pressure Vessels, Nozzles, and Multi-Nozzle Systems

NozzlePRO combines advanced finite element analysis with automated Design-By-Analysis workflows to help engineers evaluate everything, from individual nozzle connections, to complex multi-nozzle pressure vessel configurations in a single platform.​



Watch the 5-Min Walkthrough VIDEO
NozzlePRO Product Brochure _ Updated for PVPTPro (2)-1
01-1

Simple & Quick

No advanced FEA modeling experience required. Select a template, define your geometry, apply loads, run.

Path 237

Automated Reporting

Validates models against ASME Section VIII Division 2 Part 5 requirements with automated stress categorization and reporting.​​ Your deliverable generates alongside the analysis.

Path 238

Automated Modeling

Select a geometry, define your inputs, and NozzlePRO builds the FEA model automatically.
No manual mesh generation.
No boundary condition setup.

pvptpro (1)



Software Capabilities

What Is NozzlePRO?



It's a Design By Analysis program that enables engineers to perform advanced finite element analysis of pressure vessels, multi-nozzle geometries, supports, structural attachments, and multiple interacting nozzle systems without requiring extensive FEA expertise.​

The software automates model creation, validation, stress categorization, and ASME VIII-2 compliance reporting to significantly reduce analysis time while improving confidence in complex designs.



Request a Demo

components_analyzed_3x2

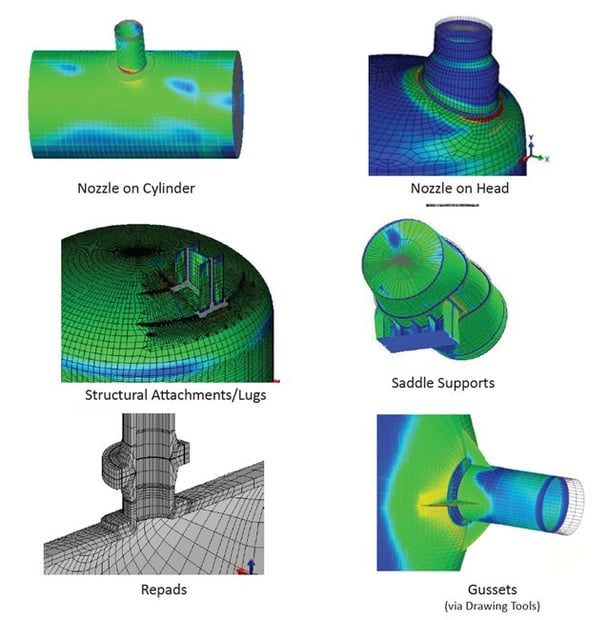

Validate Pressure Vessel Connections

  • Nozzle on Cylinder

  • Nozzle on Head (hemispherical, elliptical, flat, dished, conical)

  • Multiple Nozzle Interactions

  • Clustered Nozzle Configurations

  • Structural Attachments and Lugs

  • Saddle Supports

  • Repads

  • Gussets

  • Pressure and External Load Combinations

  • Pipe Shoes

  • Clips

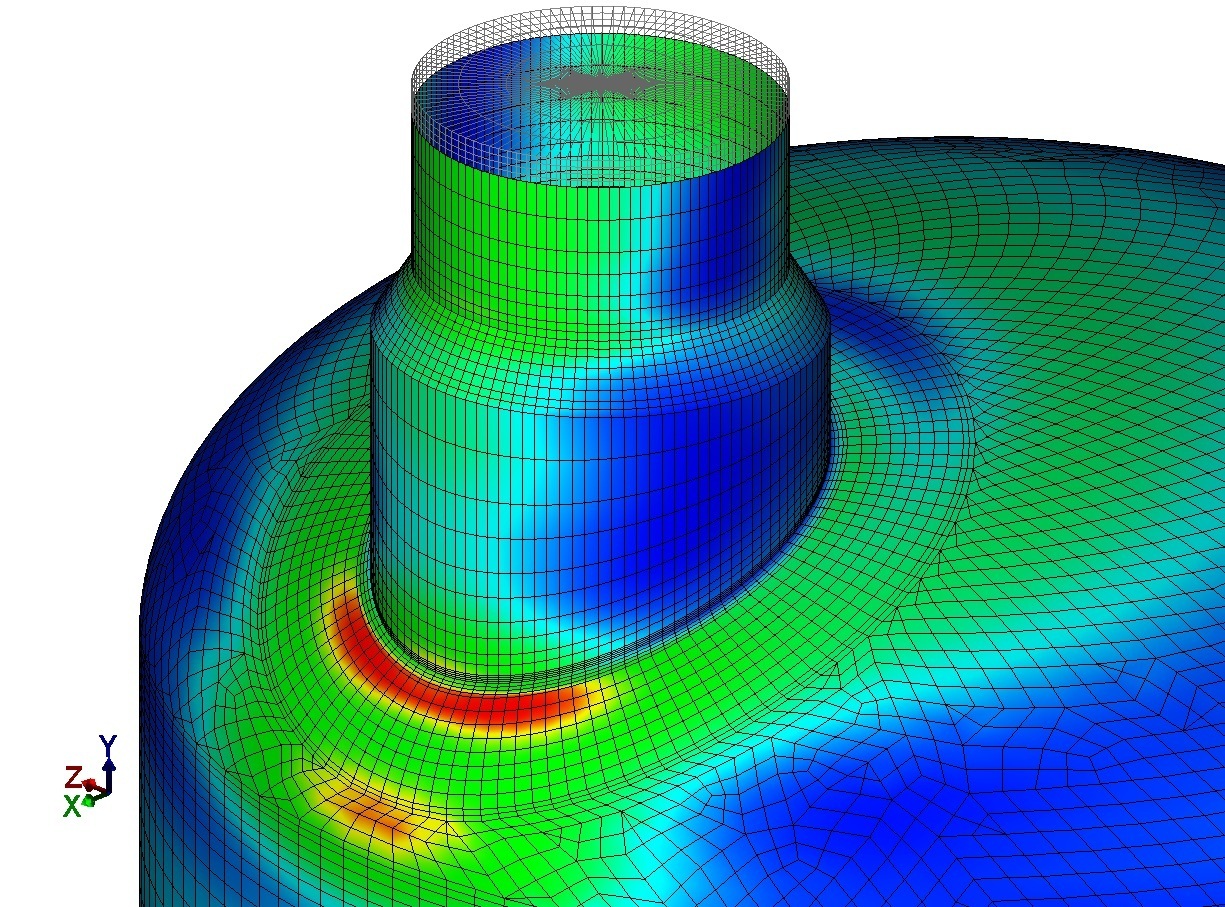

NozzlePRO image

Complete Pressure Vessel Analysis

  • Multi-nozzle and clustered nozzle analysis
  • Structural attachment interaction analysis
  • Pressure, external load, and thermal evaluations
  • Linear, nonlinear, and elastic-plastic FEA
  • Automatic ASME VIII-2 Part 5 stress categorization and compliance reporting
  • SIF, SSI, and k-factor calculations (PRGik & FESIF)
  • Acoustic-Induced Vibration (AIV) and natural frequency analysis
  • Flaw detection and fitness-for-service assessments

AdobeStock_486434790 (1)

Supported Codes

  • ASME VIII Div 1 & 2
  • EN 13445
  • PD 5500
  • ASME B31.1
  • B31.3
  • B31J
  • CSA B51:24 Annex J



Contact Us to Book a Demo

See NozzlePRO work on your geometry



Whether you're evaluating NozzlePRO for the first time or comparing it against your current FEA workflow, our engineering team will walk you through the software on real vessel and nozzle geometries.

Tell us what you're working on and we'll tailor the session to your use cases.

Request a Demo

Fill out the form below and our team will reach out within one business day to schedule your session.
